A car’s battery voltage reveals more than most drivers realize. Those few numbers on a voltmeter tell the story of your vehicle’s health, starting power, and electrical balance.
A healthy battery keeps the starter motor, lights, and electronics running smoothly, while low voltage hints at trouble waiting to happen. A fully charged car battery should read about 12.6 volts with the engine off, and around 13.7 to 14.7 volts once the engine runs.
Readings outside this range signal problems such as a weak battery, faulty alternator, or poor electrical connection. Regular voltage checks prevent unexpected breakdowns and extend the lifespan of both the battery and the charging system.
Understanding what these numbers mean empowers every driver to catch early warning signs before they become expensive repairs. A quick glance at the voltmeter can save time, money, and frustration on the road.
What Should Voltage on Car Battery Be?
A car battery is the heart of a vehicle’s electrical system. It powers everything from the starter motor that gets the engine running to the lights, radio, and sensors that keep you safe and comfortable.
A weak or faulty battery can cause serious issues, like slow cranking, dim headlights, or even a car that won’t start at all.
Knowing the correct voltage of your car battery helps you understand its health and performance. Even a small change in voltage can reveal whether your battery is strong, weak, or about to fail.
This guide explains in clear detail what voltage your battery should show, how to check it properly, and what different readings mean.
What Is the Ideal Voltage for a Car Battery?
A car battery’s voltage depends on its charge level and whether the engine is running or off. Understanding these voltage levels helps you know what’s normal and what signals trouble.
Voltage When Engine Is Off
A fully charged car battery should measure 12.6 to 12.8 volts with the engine off. This shows that all the internal cells are working correctly.
Here’s a more detailed breakdown of what the readings mean:
-
12.8 – 12.6 volts: Battery is fully charged and in excellent health.
-
12.5 volts: Battery is around 90% charged, still good for daily use.
-
12.4 volts: Around 75% charged, needs a recharge soon.
-
12.2 – 12.3 volts: Battery is halfway charged. Starting problems may appear.
-
12.0 volts or less: Battery is weak or nearly dead. It might not start the car.
Even a small drop below 12.4 volts can reduce performance, especially in cold weather.
Voltage When Engine Is Running
Once you start the car, the alternator begins charging the battery. Voltage should increase as the system gets power from the alternator.
A healthy reading while the engine runs is between 13.7 and 14.7 volts. This shows that the alternator is charging correctly and that the battery is accepting the charge.
-
13.7 – 14.7 volts: Normal and safe range.
-
13.4 volts or below: Alternator might not be charging properly.
-
Above 15 volts: Overcharging, which can cause battery overheating and fluid loss.
If the voltage fluctuates a lot or stays too high or low, the charging system needs inspection.

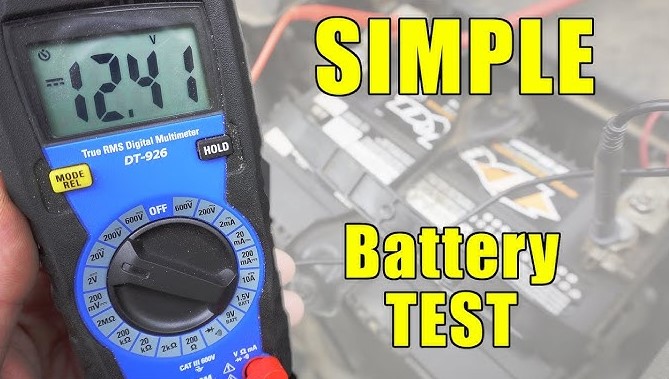

How to Test Car Battery Voltage Accurately?
Testing the battery only takes a few minutes and can prevent big problems later. You just need a digital multimeter or voltmeter.
Step-by-Step Method:
-
Turn off the car and make sure all lights and accessories are off.
-
Set the multimeter to DC volts (look for a “V” with a straight line).
-
Connect the probes:
-
Red to the positive (+) terminal
-
Black to the negative (–) terminal
-
-
Check the reading. Write it down.
-
Start the engine and check again.
Compare your results with the ranges listed above. A healthy battery should read around 12.6 volts when off and between 13.7 and 14.7 volts when running.
Voltage Drop After Starting
The moment you turn the key, the starter motor draws a large burst of current. During this time, voltage may briefly drop to 10.0–11.0 volts. This is normal and not a cause for worry.
But if the voltage falls below 9.6 volts during cranking, your battery is likely too weak or failing. A voltage drop test under load can confirm this.
Why Car Battery Voltage Matters?
Voltage tells you how much electrical energy is available in the battery. A low reading doesn’t just mean the battery is weak; it may also reveal other issues.
Here’s what voltage readings can indicate:
-
Normal (12.6V): Battery is healthy.
-
Low but stable (12.3V): Battery is undercharged but may recover with proper charging.
-
Fluctuating voltage: Possible alternator or regulator fault.
-
High voltage (>15V): Alternator overcharging, which shortens battery life.
Maintaining the right voltage protects not only the battery but also sensitive vehicle electronics.
Common Causes of Abnormal Voltage
Many factors can affect your car battery’s voltage and overall performance. Understanding them helps prevent failure.
1. Temperature Changes
Cold weather slows chemical reactions inside the battery, reducing its voltage and power output. Hot weather can cause fluid evaporation, which damages internal plates.
2. Battery Age
Most car batteries last 3 to 5 years. As they age, their ability to hold a charge decreases. You may notice the voltage dropping faster than before.
3. Short or Frequent Trips
Driving short distances doesn’t give the alternator enough time to recharge the battery. Over time, this leaves it partially charged and weak.
4. Corrosion and Loose Connections
Corrosion on terminals or loose clamps block current flow. This leads to voltage loss and poor charging efficiency. Regular cleaning with a mixture of baking soda and water helps prevent it.
5. Parasitic Drain
Some components like clocks, alarms, or sensors draw small amounts of power even when the car is off. Too much of this can slowly drain the battery overnight.
6. Failing Alternator or Voltage Regulator
A bad alternator or faulty voltage regulator may undercharge or overcharge the battery. Testing both components ensures proper charging voltage.
How to Keep Car Battery Voltage Healthy?
A few simple habits can extend the life of your battery and maintain steady voltage.
-
Clean battery terminals every few months.
-
Drive longer trips once a week to recharge the battery fully.
-
Turn off lights and accessories before shutting off the car.
-
Check charging voltage regularly with a multimeter.
-
Replace old batteries before they completely fail.
-
Store the vehicle properly during long parking periods by disconnecting the negative terminal or using a trickle charger.
FAQs
What should a car battery read overnight?
A healthy battery should stay between 12.4 and 12.6 volts after sitting overnight. If it drops below 12.2 volts, the battery might be losing charge due to a drain or age.
Can a car battery have too high voltage?
Yes. Anything above 15 volts while running means the alternator or regulator is overcharging. This can overheat and damage the battery.
Is 12.2 volts enough to start a car?
It might start, but not always. The voltage is low, and the starter may turn slowly. Charging the battery is recommended.
Why does voltage drop after starting the car?
The starter uses a large burst of power, so a small voltage drop is normal. It should return to around 13.7–14.7 volts once the engine runs.
How often should I test my car battery voltage?
Testing once every three months or before long trips is a good habit. Also, test it before winter and summer since extreme temperatures affect performance.
Conclusion
A car battery’s ideal voltage tells you everything about its condition. A reading near 12.6 volts when the engine is off shows good health. A range of 13.7 to 14.7 volts while running confirms that the alternator is charging properly.
Regular voltage checks and good maintenance keep your battery reliable for years. Clean terminals, healthy charging, and careful driving habits help you avoid the stress of a dead battery and keep your vehicle starting smoothly every time.
